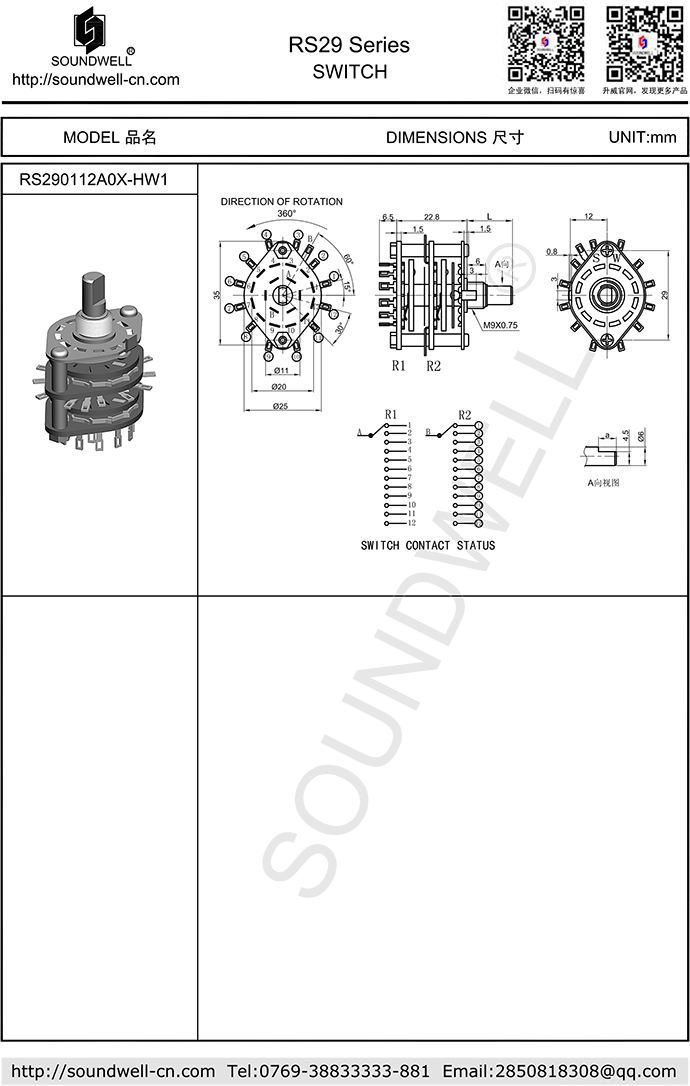

RS29 Metal shaft rotary multi-way switch

RS29 Metal shaft rotary multi-way switch

  • Series:RS29
  • Format:See the following profile
  • Specifications

    Multiple Switch Model: RS29
    Name: Metal shaft rotary multi-way switch
    Main Specifications: Dimensions:25mm;
    Rated power:DC 30V 0.3A;
    Contact resistance:50mΩ Max ;
    Positioning Points:2~12 ;
    Operating temperature:-10℃~70℃;
    Service life:10,000 More than times;
    Product Features: Wire-type terminals, Dan obvious sense, stable performance, with a sleeve attached lock function, do 2-12 stalls shaped shaft and shaft length can be adjusted.
    Applications: Mainly applied to the amplifier, controller and other electronic equipment, the main function of switching action.
    RS29ProductSpecifications

    ONE、MECHANICAL CHARACTERISTIC
    1、Rotational torque :200~1000gf.cm
    2、Step angle :30°±3°

    TWO、ELECTRICAL CHARACTERISTIC
    1、Contact resistance :50mΩ Max
    2、Rating power :DC30V 0.3A
    3、Number of detent :2~12 detents
    4、Insulation resistance :100M? 1 Minute at DC 500V
    5、Dielectric voltage :1 Minute at DC 500V

    THREE、ENDURANCE CHARACTERISTIC
    1、Rotational life :10,000 cycles Min

    Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".

    DownloadRS29.pdf
