RS1209 Operating lever and pressing operation type switch

Series：RS1209

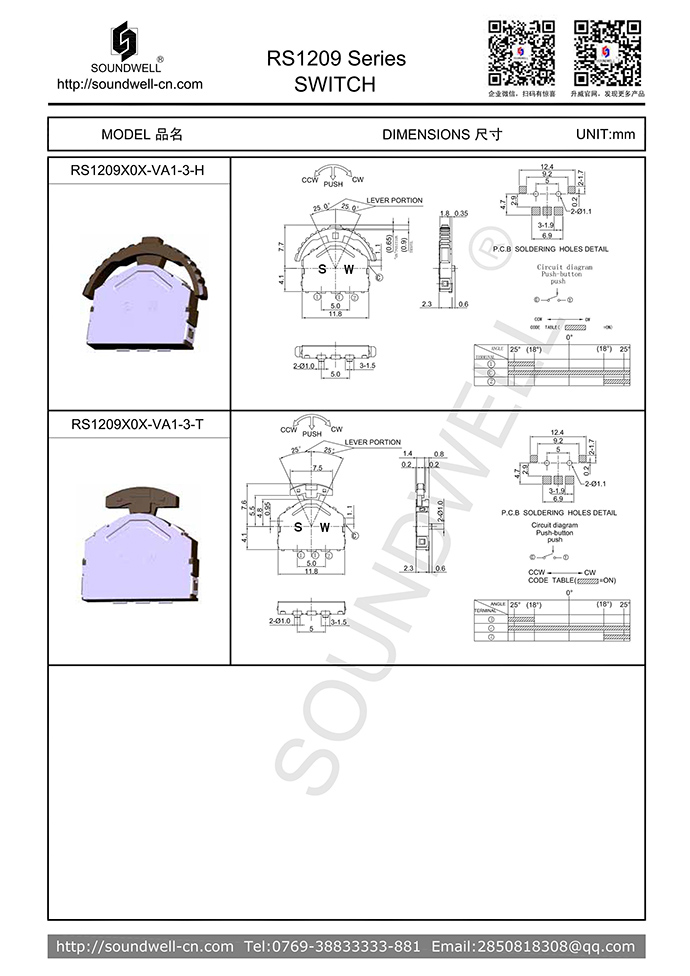

Format：See the following profile

Specifications　　

Encoder model：	RS1209
Name：	Operating lever and pressing operation type switch
Main Specifications:	Dimensions：12mm Rated voltage: DC 5V； Operating temperature：－10℃ ～+60℃； Life：100，000次以上；
Product Features：	Side to side and up and down the pressing operation, surface mount.
Applications：	Products are mainly applied to the photographic equipment, headphones, electronic toys, furniture and other intelligent electronic devices, the main function for switching menu, select functions, adjust volume and so on.

RS1209ProductSpecifications

ONE、MECHANICAL CHARACTERISTIC
1、 Operation Force ：Push:200±100gf 2-direction:100±50gf
2、Wobble of actuator (mm p-p) ：2mm p-p .

TWO、ELECTRICAL CHARACTERISTIC
1、Rating Power : 10mA, DC 5V
2、Insulation Resistance ：100 MΩ 1 Min at DC 100V
3、Dielectric Voltage ：1 Minute at AC100V

THREE、ENDURANCE CHARACTERISTIC
1、Operation Life 100,000 cycles Min

Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".

DownloadRS1209.pdf
