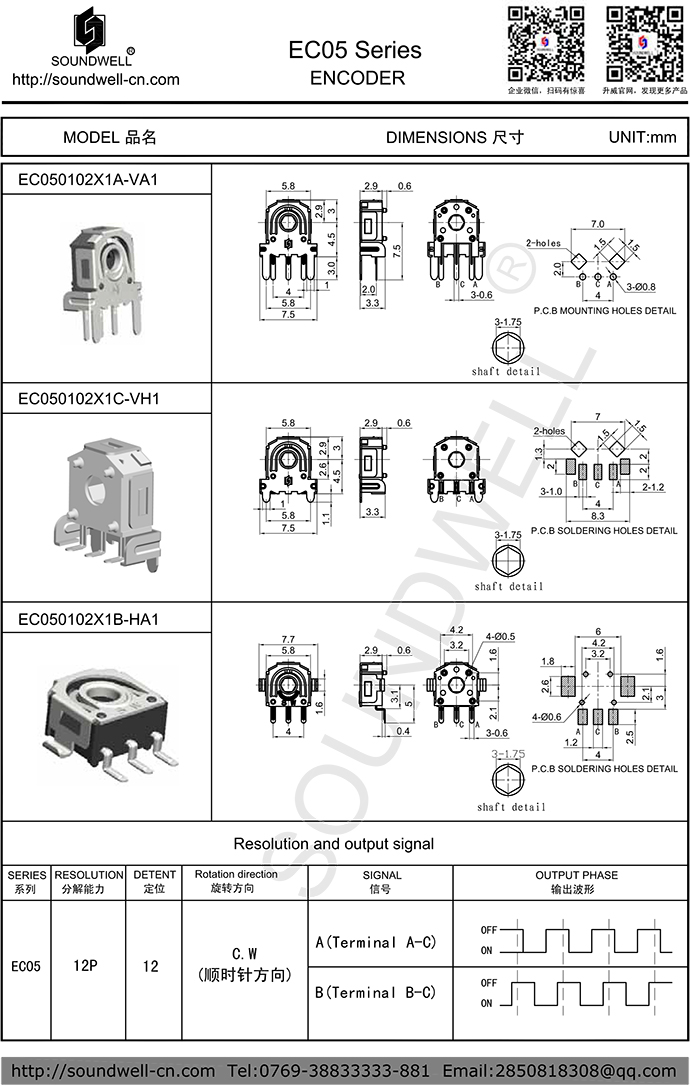

| Encoder model： | EC05 series |
| Name： | Through Shaft Incremental Encoder |
| Main Specifications: | Dimensions: 5mm Rated power: DC5V 10mA； Number of detent: 12 Pulses: 12 Working temperature: -10℃～70℃； Rotational life: 100,000 cycles Min； |
| Product Features： |
Small size with long life; Through shaft design; Available for SMT reflow soldering. |
| Applications： | Mouse, headphones, radio, electronic toys, electronic cigarettes or other electronic products; The main functions are page turning, frequency modulation, dimming, volume adjustment, speed adjustment, temperature adjustment, menu selection, etc |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 10~80gf.cm
2. Total ratational angle: 360°
3. Number of detent: 12
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 12 pulses
2. Phase difference: △T=0.15T±0.1T
3. Rated power: DC5V 10mA
4. Insulation resistance: 50M? 1 Minute at DC 50V
5. Dielectric voltage: 1 Minute at AC 50V
6. Chattering: ≤5ms
7. Bounce: ≤5ms
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 100,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
